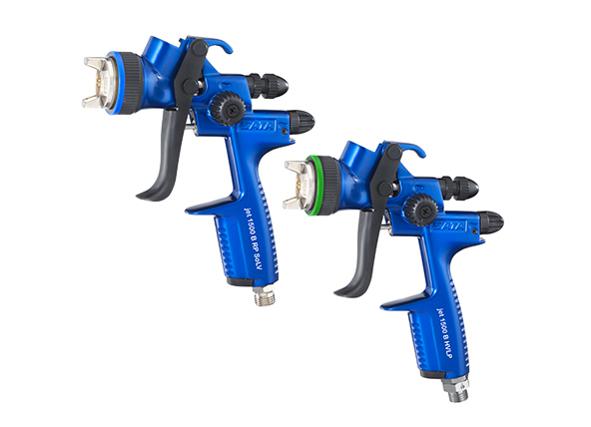

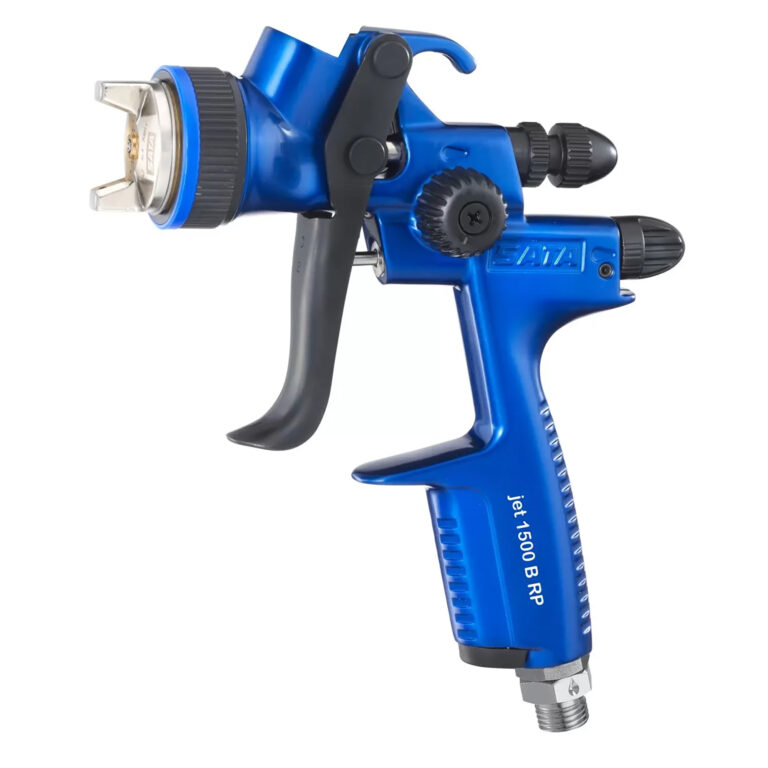

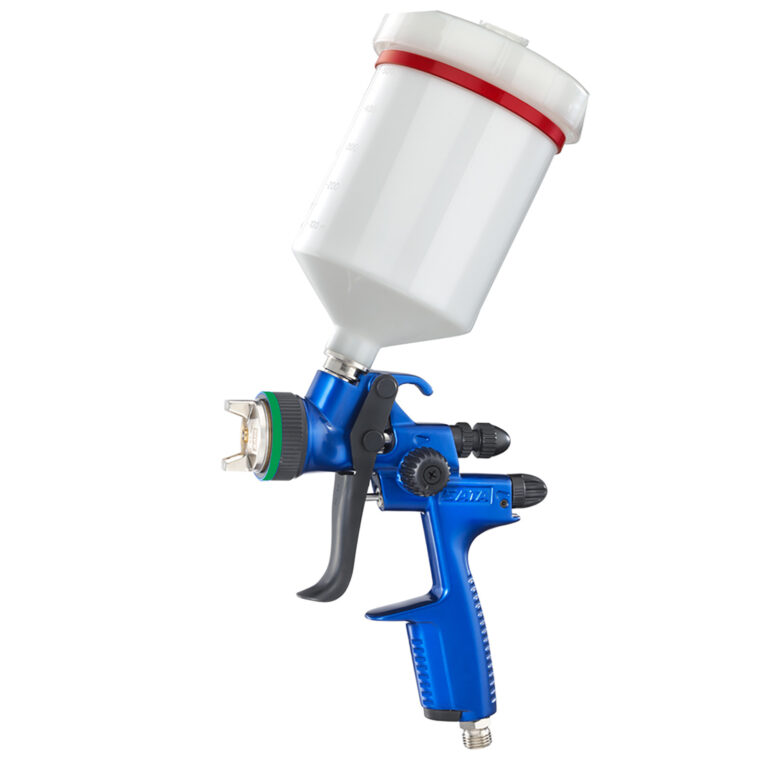

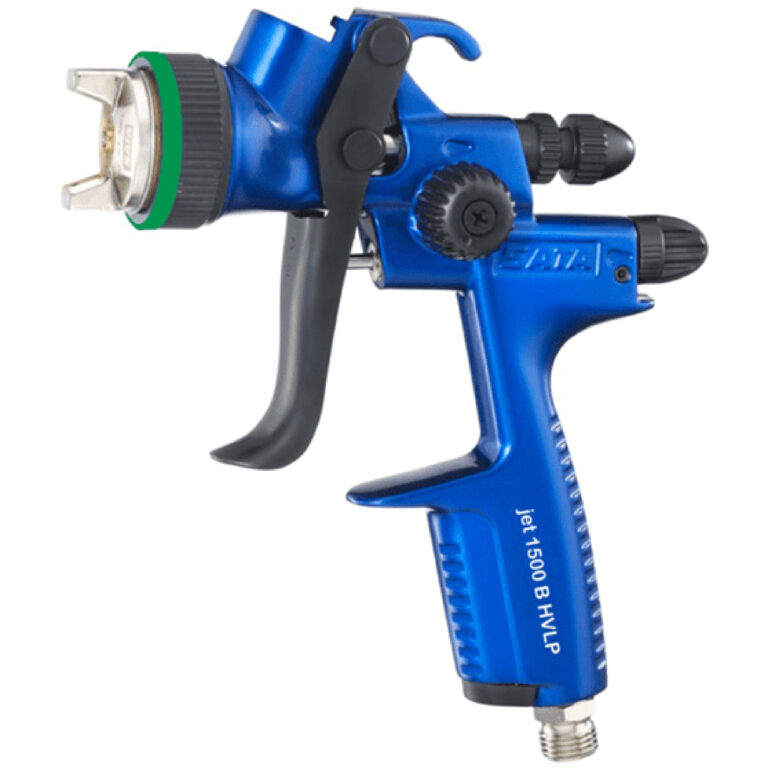

SATA 1500 B RP/HVLP Spray Gun with 600ml Cup/Pot

The SATAjet 1500 B has been developed for the cost effective application of basecoats, clear coats and 2K solid topcoats in car refinishing. The compact nozzle spectrum and robust construction ensures excellent results quickly and easily.

Product Benefits

• Optimized atomization for car refinishing
• Anodized gun body in blue with black control elements
• Enhanced application field: from 0,5 – 2,4 bar (Complies with the law for HVLP max. 2 bar, for RP max. 2 bar)

RP

• Air Consumption – 290.0 NL/Min
• Max Inlet Air Pressure – 10.0 bar
• Recommended Dynamic Inlet Pressure – 1.8 bar
• Recommended Spraying Distance – 17 – 21cm
• Cup Connection Type – QCC
• Nozzle Size 1.3 – 1.4

HVLP

• Air Consumption – 350.0 NL/Min
• Max Inlet Air Pressure – 10.0 bar
• Recommended Dynamic Inlet Pressure – 1.8 bar
• Recommended Spraying Distance – 10 – 15cm
• Cup Connection Type – QCC
• Nozzle Size 1.3 – 1.4

Manufacturer Part Numbers (MPN)

1029562
1029702
1029710
1093575
